The Liquid Supply System

Gain precise fluidic control of your in situ liquid experiments

The DENSsolutions Liquid Supply System (LSS) is an integrated solution designed to offer you ease-of-use, flexibility and reproducibility in your in situ liquid experiments. With the LSS, you can fully control the microfluidic environment inside the Nano-Cell while biasing or heating your sample.

1. Ease of use

The integration of various individual parts into the Liquid Supply System greatly simplifies the operation of the system as you no longer need to work with the individual components separately. Moreover, the flexible design of the LSS, particularly the moveable base, enables you to easily relocate, store and set it up in various locations.

1. Ease of use

The integration of various individual parts into the Liquid Supply System greatly simplifies the operation of the system as you no longer need to work with the individual components separately. Moreover, the flexible design of the LSS, particularly the moveable base, enables you to easily relocate, store and set it up in various locations.

2. High resolution imaging and meaningful analytical analysis

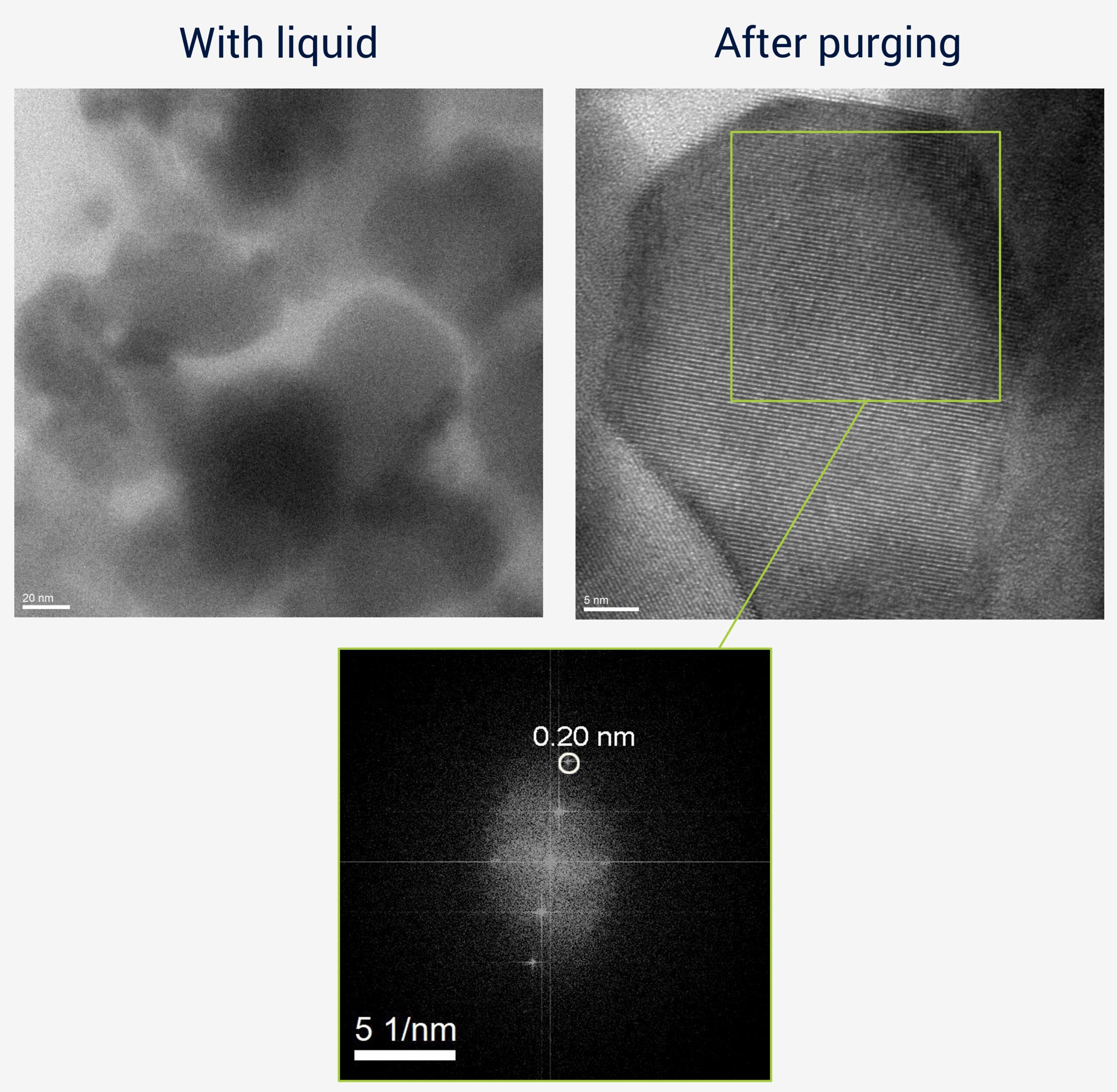

The LSS introduces the capability of controllable and inert gas purging. The purging is done via a separate gas line, allowing you to flawlessly switch between the liquid and inert gas to characterize the sample in between, for example, electrochemical cycling. The switching can be achieved without the air exposure, which is especially beneficial for air-sensitive samples, like Li-ion batteries. Via air/inert gas purging, you can easily get rid of excess liquid in the sample, thereby allowing you to achieve high resolution imaging and to perform meaningful electron diffraction, EELS and EDX studies.

Video showing liquid reaching the sample area within the Nano-Cell after only 37 seconds.

3. Reliable and reproducible results

The components of the LSS, such as the inlet and outlet pressure-based pumps as well as the liquid flow meter, introduce an unprecedented level of control during your liquid phase microscopy experiments. The LSS offers the unique ability to actively measure the liquid flow, making it possible for you to compare results from different experiments. Moreover, this means that you can easily detect potential clogs in the system and act fast, allowing you to spend your TEM time efficiently and effectively.

Ultimately, the combination of our LSS and unique Nano-Cell design, having an on-chip inlet and outlet, enables the liquid delivery to be both reliable and reproducible with a success rate of more than 95%.

3. Reliable and reproducible results

The components of the LSS, such as the inlet and outlet pressure-based pumps as well as the liquid flow meter, introduce an unprecedented level of control during your liquid phase microscopy experiments. The LSS offers the unique ability to actively measure the liquid flow, making it possible for you to compare results from different experiments. Moreover, this means that you can easily detect potential clogs in the system and act fast, allowing you to spend your TEM time efficiently and effectively.

Ultimately, the combination of our LSS and unique Nano-Cell design, having an on-chip inlet and outlet, enables the liquid delivery to be both reliable and reproducible with a success rate of more than 95%.

Video showing liquid reaching the sample area within the Nano-Cell after only 37 seconds.

Application Note

Achieving high-resolution imaging and analytical analyses in a liquid flow cell via gas purging

In this work, we demonstrate the Stream Liquid Supply System’s advanced capability of controllable and inert gas purging on gold nanoparticles. It is shown that by purging the liquid – flowing a gas to remove the liquid in the field of view, the ability to acquire high-resolution TEM images and perform meaningful analytical analyses like EDX mapping and EELS is successfully enabled.

News Article

Introducing the Liquid Supply System: An integrated solution offering unmatched flexibility

An interview with DENSsolutions Mechanical Engineer Alejandro Rozene about our latest addition to the Stream product line: the Liquid Supply System (LSS).
