In Situ TEM Heating
Heat your sample up to 1300 °C with highly accurate temperature control and unprecedented sample stability in all directions.
Wildfire Application Fields
LowD Materials
Nanotechnology
Materials Engineering
Materials for Energy Applications
Soft Matter Systems
LowD Materials
Nanotechnology
Materials Engineering
Materials for Energy Applications
Soft Matter Systems
Get more from your TEM, 3 reasons to choose for Wildfire
Investigating materials while changing temperature expands the application space of conventional TEM and enhances its already powerful imaging capabilities. The Wildfire system allows for researchers to heat from room temperature to 1,300 °C with the ultimate temperature control and ultimate sample stability in all directions. The stability of the Wildfire system ensures that the full resolution and analytical performance of every TEM can be maintained while observing sample dynamics at elevated temperature.
Get more from your TEM, 3 reasons to choose for Wildfire
Investigating materials while changing temperature expands the application space of conventional TEM and enhances its already powerful imaging capabilities. The Wildfire system allows for researchers to heat from room temperature to 1,300 °C with the ultimate temperature control and ultimate sample stability in all directions.
The stability of the Wildfire system ensures that the full resolution and analytical performance of every TEM can be maintained while observing sample dynamics at elevated temperature.
Reason 1:
High-impact publications
Obtaining the ‘game changing’ experimental results is the goal of any researcher – academic or industry.
The team at Cambridge University focusing on energy related materials used the Wildfire system to study perovskite solar cells and their degradation processes during heating. These solar cells have become increasingly popular, however, the stability and lifetime of such devices at elevated temperatures are of concern. In situ TEM was used to understand the changes in morphology and chemical composition, leading to an improved understanding of the degradation evolution and Nature Energy publication.
Heat-induced degradation of perovskite solar cells. G. Divitini, et al. University of Cambridge Nature Energy 2016. DOI: 10.1038/nenergy.2015.12
Reason 2:
Real time dynamics
Behavior at the macroscale is strongly linked to atomic arrangement and its transformation. In this example Ru nanoparticles supported on silica are heated to 1300 °C using a DENSsolutions Wildfire system. At that temperatures, the SiO2 sphere evaporates and the Ru nanoparticles become very mobile. The emphasized nanoparticle changes from round to square. This shape change can be studied in detail, due to technology behind DENSsolutions heating systems which ensures high sample stability, sub-Å resolution and therefore enables deeper understanding of the processes involved,
Courtesy of Gatan. Acquired with Wildfire D6 (now H+ DT) and Gatan OneView IS camera on a Thermo Fisher Scientific (FEI) Tecnai TF20
Reason 3:
High temperature EDS
Chemical analysis while heating is extremely important to understand the dynamics of temperature-induced transformations High quality EDS analysis at elevated temperatures is challenging due to the intense generation of infrared radiation during heating which disturbs the X-Ray spectral acquisition. DENSsolutions provides the technology and the experimental evidence thatin situ EDS at elevated temperatures is reliable and robust technique across a large temperature range. For the first time it was shown that EDS analysis is possible even at 1000 °C.
Acquired on a Wildfire S3. Maps courtesy of Bruker
Customer Publications
![Structural Evolution of Ni-Based Co-Catalysts on [Ca2Nb3O10]− Nanosheets during Heating and Their Photocatalytic Properties](https://denssolutions.com/wp-content/uploads/2019/12/Structural-Evolution-of-Ni-Based-Co-Catalysts-on-Ca2Nb3O10−-Nanosheets-during-Heating-and-Their-Photocatalytic-Properties-3.jpg)
Testimonials
Frequently Asked Questions
What is the tilt range of the Wildfire system?
This tilt range is dependent on the pole-piece gap of your TEM. Here is the summary based on the largest pole-piece: Wildfire H/H+: Alpha tilt up to ±30°, Wildfire H+ 3D: Alpha tilt ±70°, Wildfire H+ DT: Alpha & Beta tilt up to ±25°. For detailed specifications please refer to the brochure.
What is the best achievable resolution at elevated temperature?
The resolution of 0.6 Å can routinely be achieved at 1000 °C. The resolution is dependent on your TEM; however, the achievable resolution at elevated temperature will be as good as for your standard TEM holder.
What is the temperature range for the Wildfire system?
The Wildfire H system allows any temperature between RT to 600 °C. All the other systems enable any temperature between RT and 1100 °C (SiNx support) and 1300 °C (through hole).
Is Wildfire compatible with EDX?
Due to small heater using only a few mW of power to heat to elevated temperatures, EDX signal can now be obtained at elevated temperatures up to 1000 °C. Performance is dependent on your TEM/EDS setup.
Can a Wildfire system be used for biasing experiments?
We support customers in upgrading their Wildfire H+ DT systems to perform biasing experiments. This is the Wildfire Biasing Expansion Pack. In the case that the customer develops their own MEMS devices for biasing experiments, the Wildfire holder is able to be used in conjunction with these ‘home-made’ MEMS devices.
Download the Impulse brochure
For more information on workflow and specifications of Impulse.

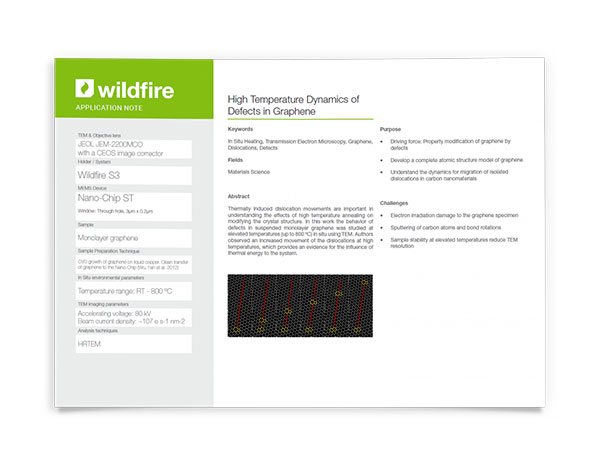

Application Notes
